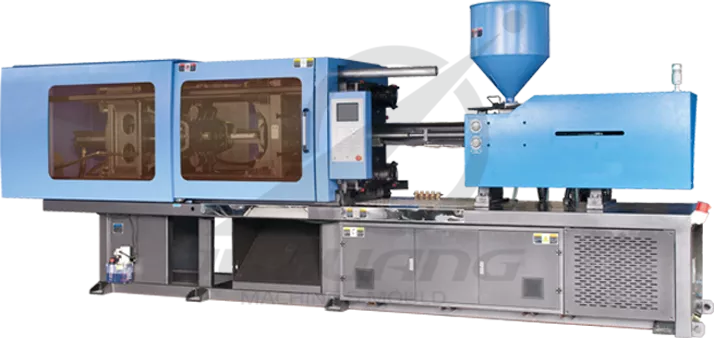

PET Series Special MaChine Feature

——

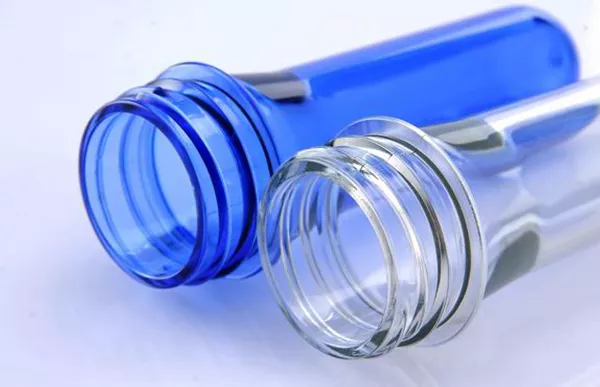

● The screw-designed optimum can inject plastic with minimized aldehyde content of preform. ● Advanced plastizing quality performs preform color more equably. ● Some units' structures are improved optimum to make production efficient higher according to preform product.

Features

—————

● Power saving

Power saving 30%-60%.

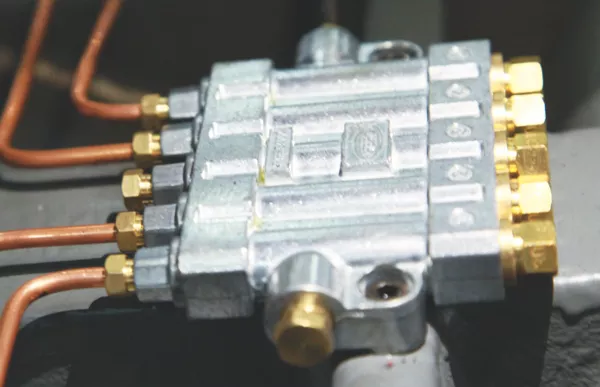

● Fuel Saving

Equipped with imported high-performance precision oil filter device to ensure longer service life of hydraulic oil.

● Water saving

High-efficiency clamping system ensures a perfect and trace-free bottle clamping line. Precise bidirectional axial uniform heating ensures uniform thickness of the bottle body and achieves the purpose of lightweight bottle blowing.

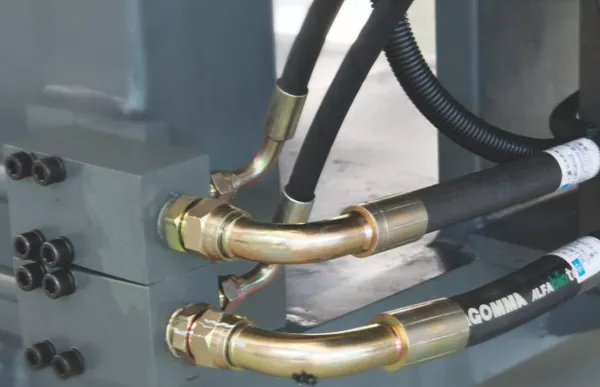

● Fast

The output displacement of the variable pump with the same power motor is 20% larger than that of the fixed pump.

Technical Parameter

—————

Model		JG-96			JG-116			JG-156			JG-176			JG-206			JG-246			JG-286			JG-306			JG-366			JG-406			JG-466			JG-526				JG-626

		A	B	C	A	B	C	A	B	C	A	B	C	A	B	C	A	B	C	A	B	C	A	B	C	A	B	C	A	B	C	A	B	C	A	B	C	D	A	B	C	D
Screw Diameter	mm	32	35	38	35	38	42	38	42	45	40	45	48	45	50	55	50	55	60	55	60	65	60	65	70	65	70	75	70	75	80	75	80	85	75	80	85	90	85	90	95	100
Screw Ud Ratio	L/D	23.7	21.7	20	22.8	21	19	23.1	20.9	19.5	22.5	80	18.8	22.2	20	18.2	22	20	18.3	22.5	20.6	19	22.7	21	19.5	22.6	21	19.6	21.4	20	18.8	21.3	20	18.8	22.7	21.3	20	18.9	22.2	21	19.9	18.9
Injection Capacity In Theory	cm³	128	154	181	154	181	222	198	242	278	245	324	353	349	431	522	451	546	650	594	707	830	735	862	1000	995	1155	1325	1423	1634	1859	1634	1860	2099	1855	2110	2382	2670	2298	2576	2870	3181
Injection Weight(ps)	g	116	140	164	143	168	206	180	220	253	228	301	328	324	400	485	420	508	605	552	655	770	683	802	930	926	1074	1232	1295	1487	1692	1495	1701	1921	1688	1920	2168	2430	2091	2344	2611	2895
Injection Pressure	MPa	262	219	185	219	186	152	248	203	177	224	177	155	210	170	140	205	1698	142	200	168	143	190	162	140	182	157	137	199	173	152	191	168	148	191	168	149	133	206	184	164	149
Injection Rate	g/s	71	85	101	87	102	126	97	118	135	118	150	170	128	158	192	190	230	275	227	270	316	278	327	379	245	284	326	366	395	446	382	435	491	409	465	525	589	417	470	530	580
Plasticizing Capacity	g/s	12	15	17	13	16	19	17	21	23	18	22	25	20	25	32	31	38	45	35	43	51	50	59	68	33	41	49	60	65	70	52	57	62	68	78	88	99	60	75	85	100
Screw Speed	rpm	200			200			230			180			170			180			180			180			136			160			150			130				125

Clamping Force	kN	960			1160			1560			1760			2060			2460			2860			3060			3660			4060			4660			5260				6260
Moving Mould-plate Stroke	mm	315			350			380			430			475			520			550			600			660			700			780			830				870
Max.Mould Height	mm	360			400			430			480			530			580			600			690			750			800			820			830				900
Min.Mould Height	mm	150			150			170			180			200			200			230			230			250			280			300			330				350
Space Between Tie-bars	mm	360×340			410×370			405×405			460×460			505×505			520×520			570×570			605×590			670×670			720×720			770×770			810×810				850×850
Hydraulic Ejector Force	kN	43			38			33			40			65			71			65			70			70			110			120			181				200
Hydraulic Ejector Stroke	mm	90			110			115			120			130			150			130			150			160			160			200			230				260
Ejecto Number	n	5			5			5			5			5			9			9			13			13			13			13			17				17

Pump Pressure	MPa	16			16			16			16			16			16			16			16			16			16			16			16				16
Motor Power	kW	11			11			15			15			18.5			22			30			30			30			37			45			45				55
Heating Capacity	kW	6.9			7.86			8.49			8.1			11.95			13.53			16.73			18.73			19.93			20.73			24			24.8				41.5
Machine Dimension	m	4.16×1.19×1.79			4.34×1.29×1.86			4.82×1.46×1.87			5.1×1.53×2.03			5.71.54×2.09			5.80×1.61×2.04			6.10×1.70×2.08			6.47×1.75×2.15			7.21×1.82×2.24			7.30×2.08×2.4			7.93×2.08×2.4			8.34×2.14×2.61				9.5×2.4×2.7
Machine Weight	t	3.2			3.5			3.8			4.6			7			7.2			9			9.3			12			14.2			18			21				31

* All specifications and designs are subject to change without notice.
